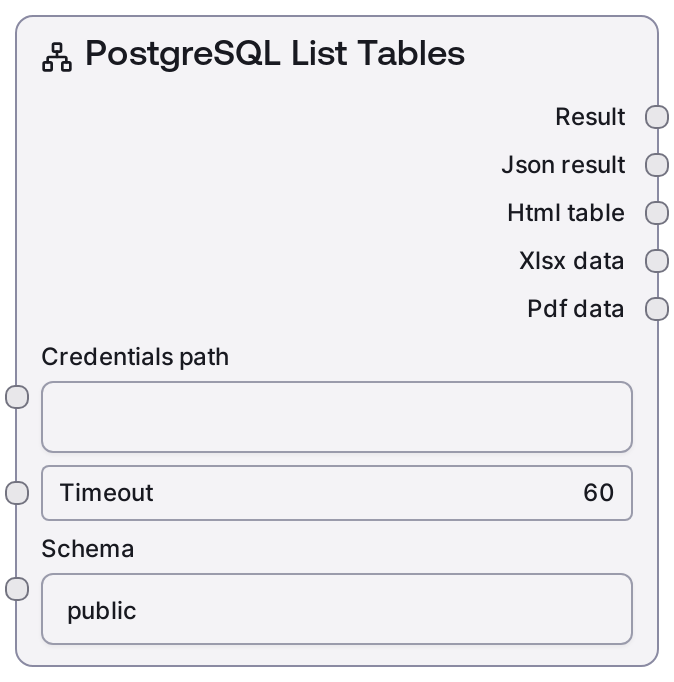

PostgreSQL List Tables¶
Lists all tables available in a specified PostgreSQL schema. It uses a database URI to connect through the configured data connector service and returns a human-readable table list along with the raw JSON response.
Usage¶
Use this node when you need to discover or enumerate tables within a specific PostgreSQL schema prior to querying data or building visual queries. Typical workflows include schema exploration, building dropdowns for table selection, and pre-validating table names before composing queries.
Inputs¶
| Field | Required | Type | Description | Example |
|---|---|---|---|---|
| credentials_path | True | STRING | Database connection URI for PostgreSQL. Must be a valid URI specifying host, port, database, and credentials. Optionally include query parameters (e.g., schema, sslmode). | postgresql://postgres: |
| timeout | True | INT | Maximum time in seconds to wait for the service request to complete. | 60 |
| schema | True | STRING | PostgreSQL schema name to list tables from. | public |
Outputs¶
| Field | Type | Description | Example |
|---|---|---|---|
| result | STRING | Human-readable summary listing the tables found in the specified schema. | Tables in schema 'public' (3 tables): - users - orders - products |
| json_result | STRING | JSON string of the raw service response containing the tables. | {"tables": ["users", "orders", "products"]} |
| html_table | STRING | HTML output (not used by this node; returns empty string). | |
| xlsx_data | STRING | Base64-encoded XLSX export (not used by this node; returns empty string). | |
| pdf_data | STRING | Base64-encoded PDF export (not used by this node; returns empty string). |
Important Notes¶
- Credentials URI required: The credentials_path must be a valid PostgreSQL URI (e.g., postgresql://user:
@host:port/db). - Service configuration: The node depends on the PostgreSQL data connector service being configured and reachable via the platform’s ENDPOINTS settings.
- Schema scope: Only tables within the provided schema are returned. If the schema is empty or incorrect, the result may be an empty list.
- Output formats: This node returns only text and JSON; HTML, XLSX, and PDF outputs are intentionally empty strings.
- Security: Never embed real credentials in shared workflows. Use secured secrets or environment-managed values.
Troubleshooting¶
- Invalid credentials URI: If you see an error about the credentials URI, ensure it starts with postgresql:// and includes host, port, database, and proper encoding for special characters in username/password.
- Service URL not configured: Errors indicating missing service URL mean the PostgreSQL connector endpoint is not set in ENDPOINTS. Contact an administrator to configure it.
- Timeouts: Increase the timeout input if listing large schemas or when the connector service is under load.
- Empty result: If no tables are returned, verify the schema name, user permissions on that schema, and that you’re connecting to the intended database.
- Authentication/SSL issues: For SSL-required environments, include sslmode in the URI (e.g., sslmode=require). Verify that username/password are correct.
