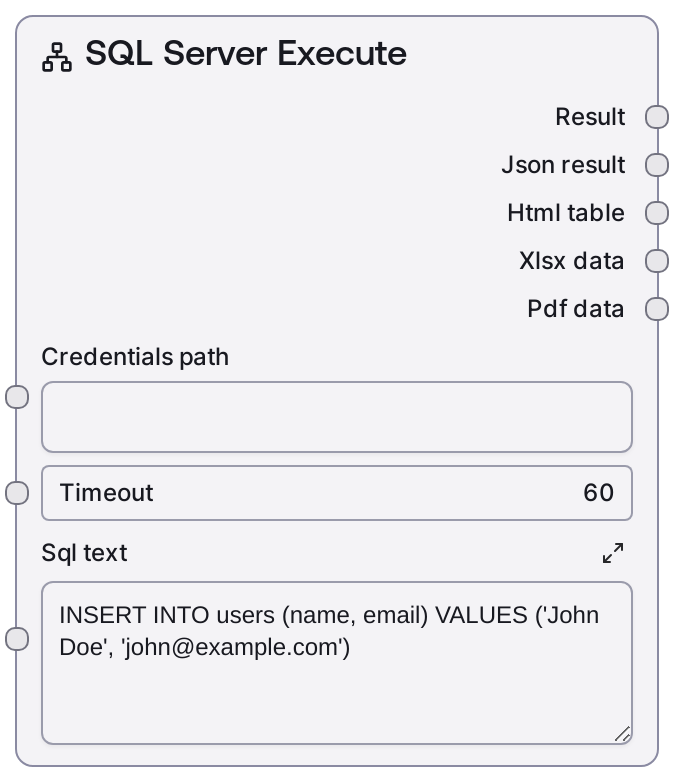

SQL Server Execute¶
Executes non-SELECT SQL statements (INSERT, UPDATE, DELETE, DDL) against a Microsoft SQL Server database. Uses a connection URI to contact the Salt database service and returns a concise execution summary and a JSON result. Designed for write/administrative operations rather than data retrieval.
Usage¶
Use this node when you need to modify data or schema in a SQL Server database from a Salt workflow. Provide a valid MSSQL connection URI and a single SQL statement to execute. For read operations (SELECT), use the SQL Server Query node instead. Typical usage: build or provide a connection string, set a reasonable timeout, enter your SQL statement, and connect the outputs to logging or downstream control nodes.
Inputs¶
| Field | Required | Type | Description | Example |
|---|---|---|---|---|
| credentials_path | True | STRING | Database connection URI in MSSQL format. Must include protocol, host, port, database, and authentication details. Example schemes: mssql:// or sqlserver:// | mssql://sa: |
| timeout | True | INT | Request timeout in seconds for the execution call to the database service. | 60 |
| sql_text | True | STRING | The SQL statement to execute. Intended for non-SELECT operations such as INSERT, UPDATE, DELETE, or DDL. | INSERT INTO users (name, email) VALUES ('John Doe', 'john@example.com') |
Outputs¶
| Field | Type | Description | Example |
|---|---|---|---|
| result | STRING | Human-readable summary of the execution outcome (e.g., affected rows). | Statement executed successfully. Affected rows: 1 |
| json_result | STRING | Raw JSON response from the database service with structured execution details. | {"affected_rows": 1, "status": "success"} |
| html_table | STRING | HTML table representation of results. For execute operations this is typically empty. | |
| xlsx_data | STRING | Base64-encoded XLSX data of results. For execute operations this is typically empty. | |
| pdf_data | STRING | Base64-encoded PDF data of results. For execute operations this is typically empty. |
Important Notes¶
- Ensure the credentials_path is a valid MSSQL URI (e.g., mssql://user:pass@host:1433/database). Invalid or unsupported schemes will be rejected.
- This node is for non-SELECT statements. Use SQL Server Query for data retrieval to get tabular outputs.
- A properly configured service endpoint for SQL Server must be available; if not set globally, provide service_url via the connection URI query parameters.
- Execution is sent to a remote service; network connectivity and service availability are required.
- Be cautious with dynamic SQL to avoid SQL injection. Provide parameterized or trusted statements when possible.
- The html_table, xlsx_data, and pdf_data outputs are not populated for execute operations and will usually be empty strings.
Troubleshooting¶
- Invalid credentials URI: Verify the URI starts with mssql:// or sqlserver:// and includes host, port, and database.
- Connection or timeout errors: Increase the timeout value and ensure the database service endpoint is reachable from your environment.
- Authentication failures: Check username/password, firewall rules, and that the target instance accepts your auth method.
- SQL syntax errors: Validate sql_text by running it directly against the database or testing in a SQL client.
- Insufficient privileges: Ensure the provided user has rights to execute the given statement.
- Service URL not configured: If the workflow environment lacks a configured MSSQL data connector endpoint, include service_url in the connection URI query parameters or update global endpoints.
