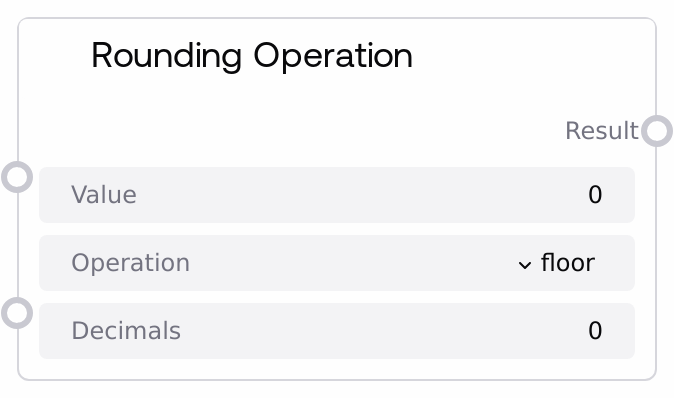

Rounding Operation¶
Performs numeric rounding on a single value. Supports floor, ceil, standard rounding to a specified number of decimal places, and truncation toward zero. Always returns a floating-point result.
Usage¶
Use this node when you need to transform a numeric value to a rounded form for downstream logic, formatting, or thresholding. Typical flows include cleaning sensor outputs, preparing values for display, or enforcing numeric constraints before comparisons.
Inputs¶
| Field | Required | Type | Description | Example |
|---|---|---|---|---|
| value | True | FLOAT | The numeric value to be rounded. Accepted range is approximately -1e10 to 1e10. | 3.14159 |
| operation | True | ['floor', 'ceil', 'round', 'trunc'] | The rounding method to apply. 'floor' rounds down, 'ceil' rounds up, 'round' rounds to nearest with optional decimals, 'trunc' removes the fractional part toward zero. | round |
| decimals | True | INT | Number of decimal places to round to. Used only when operation is 'round'. Valid range is 0–10. | 2 |
Outputs¶
| Field | Type | Description | Example |
|---|---|---|---|
| result | FLOAT | The rounded numeric result as a float. | 3.14 |
Important Notes¶
- Decimals usage: The 'decimals' input only affects the 'round' operation; it is ignored for 'floor', 'ceil', and 'trunc'.
- Return type: The node always returns a FLOAT, even when the mathematical result is an integer (e.g., 3.0).
- Rounding behavior: 'round' uses standard rounding with ties-to-even behavior (banker's rounding) when exactly between two values.
- Bounds: Inputs outside the range [-1e10, 1e10] are not accepted by the UI constraints.
- Error handling: If an unknown operation is provided or an error occurs, the node returns 0.0.
Troubleshooting¶
- Unexpected 0.0 output: Ensure 'operation' is one of ['floor', 'ceil', 'round', 'trunc'] and 'value' is a valid number.
- Decimals not applied: Confirm 'operation' is set to 'round'; other operations ignore the 'decimals' input.
- Tie rounding differs from expectations: For .5 cases, 'round' uses ties-to-even. If you need always-round-half-up, consider adjusting the value before rounding.
- Result is float instead of int: This is by design. If an integer is needed, convert downstream as appropriate.
