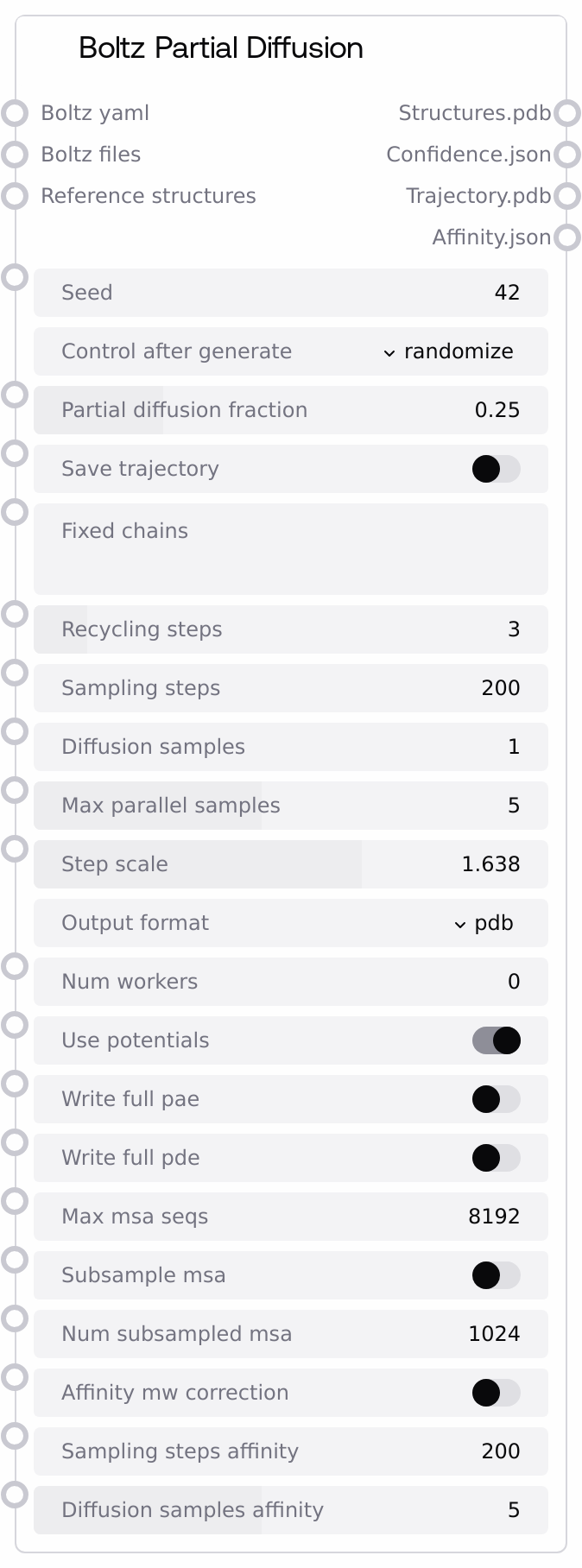

Boltz Partial Diffusion

Runs partial diffusion-based structure refinement/generation using a Boltz YAML specification and reference structures. Supports single-chain and multimer systems, selectively fixing specified chains and optionally saving diffusion trajectories. Can also compute affinity if requested in properties.

Usage

Use this node after assembling a valid Boltz YAML and auxiliary files (MSAs/templates) with the Boltz YAML Combiner. Provide one or more reference structures in PDB format to anchor partial diffusion. Optionally set which chains remain fixed, the fraction of the diffusion process to run, sampling settings, and whether to save trajectories. If affinity is included in properties, enable the related options to obtain affinity predictions.

Inputs

Field	Required	Type	Description	Example
boltz_yaml	True	BOLTZ_YAML	Boltz YAML configuration describing sequences (and optionally constraints/templates/properties).	{'version': 1, 'sequences': [{'protein': {'id': 'A', 'sequence': 'MSEQN...', '_sequence_name': 'protA', 'msa': 'msa_1.a3m'}}], 'properties': [{'affinity': {'binder': 'L'}}]}
boltz_files	True	BOLTZ_FILES	Auxiliary files referenced by the YAML (e.g., MSA A3M files, template PDB/CIF files) as a mapping from filename to file content.	{'msa_1.a3m': '', 'template_1.pdb': ''}
reference_structures	True	PDB	Reference structure(s) in PDB format used to anchor the partial diffusion. Provide as a mapping name -> PDB text.	{'ref_model.pdb': ''}
seed	True	INT	Base random seed. When multiple sequence entries are present, the seed is incremented per entry.	42
partial_diffusion_fraction	False	FLOAT	Fraction of the diffusion process to apply (0.0 = no diffusion, 1.0 = full diffusion).	0.25
save_trajectory	False	BOOLEAN	If true, saves the diffusion trajectory (intermediate structures) for analysis.	True
fixed_chains	False	STRING	Comma-separated chain IDs to keep fixed during partial diffusion. Must match chain IDs defined in YAML.	A,B
recycling_steps	False	INT	Number of recycling iterations during prediction/refinement.	3
sampling_steps	False	INT	Number of diffusion sampling steps.	200
diffusion_samples	False	INT	Number of independent diffusion samples to generate per input.	1
max_parallel_samples	False	INT	Maximum number of samples to run in parallel.	5
step_scale	False	FLOAT	Diffusion step scale (temperature-like parameter) controlling exploration.	1.638
output_format	False	['pdb', 'mmcif']	Output structure format.	pdb
num_workers	False	INT	Number of parallel workers (0 disables multiprocessing).	0
use_potentials	False	BOOLEAN	Use inference-time potentials to guide sampling (recommended for partial diffusion).	True
write_full_pae	False	BOOLEAN	If true, writes the full Predicted Aligned Error matrix to confidence output.	False
write_full_pde	False	BOOLEAN	If true, writes the full Predicted Distance Error matrix to confidence output.	False
max_msa_seqs	False	INT	Maximum number of MSA sequences to use.	8192
subsample_msa	False	BOOLEAN	Whether to subsample MSA sequences.	False
num_subsampled_msa	False	INT	Number of MSA sequences to keep when subsampling is enabled.	1024
affinity_mw_correction	False	BOOLEAN	Apply molecular weight correction to affinity predictions (effective when affinity property is requested).	False
sampling_steps_affinity	False	INT	Sampling steps dedicated to affinity prediction (when requested).	200
diffusion_samples_affinity	False	INT	Number of diffusion samples for affinity prediction (when requested).	5

Outputs

Field	Type	Description	Example
structures.pdb	PDB	Predicted/refined structure files as a mapping from name to PDB text. May include multiple ranked structures per input.	{'sequence_0_ranked_0.pdb': '', 'sequence_0_ranked_1.pdb': ''}
confidence.json	JSON	Confidence metrics per output (e.g., pLDDT/PAE/PDE), keyed by name.	{'sequence_0_confidence.json': '{"plddt": [...], "pae": [...]}'}
trajectory.pdb	PDB	Saved diffusion trajectory PDB(s) when trajectory saving is enabled; otherwise may be empty.	{'sequence_0_trajectory.pdb': ''}
affinity.json	JSON	Affinity prediction outputs when affinity is requested in properties; empty otherwise.	{'sequence_0_affinity.json': '{"KD": 1.2, "units": "uM"}'}

Important Notes

• Reference structures required: You must provide at least one PDB reference structure; this anchors partial diffusion.
• Chain IDs must match: Any fixed_chains must correspond to chain IDs defined in the YAML sequences.
• Trajectory output: trajectory.pdb is only populated if save_trajectory is true.
• Affinity outputs: affinity.json is produced only when the YAML includes an affinity property and the system is set up for affinity prediction; including a ligand sequence is typically required.
• Multimer handling: The node automatically detects multimer vs. single-chain mode based on the number of unique chain IDs in the YAML.
• Per-sequence batching: If multiple sequence entries exist in the YAML, the node processes them sequentially and aggregates outputs, incrementing the seed for each.
• MSA/templates linkage: Ensure boltz_files contains all filenames referenced in boltz_yaml (e.g., msa_.a3m, template_.pdb).
• Partial diffusion fraction: Lower values keep the structure closer to the reference; higher values allow more deviation.

Troubleshooting

• Error: 'Fixed chains {...} not found in YAML sequences': Check fixed_chains values and ensure all chain IDs are defined in the YAML sequences.
• Empty trajectory output: Set save_trajectory to true to record intermediate diffusion states.
• Missing affinity output: Verify that boltz_yaml includes an affinity property and that the system includes a ligand sequence; enable affinity-related options if needed.
• Invalid YAML or files: Ensure boltz_yaml is a dictionary with at least one sequence and boltz_files is a dictionary mapping filenames to contents; all referenced files must exist in boltz_files.
• PDB parsing issues: Confirm reference_structures is a dict with at least one valid PDB text value.
• Unexpected few outputs for multimers: Verify that all chains and MSAs are correctly specified; check that fixed_chains does not unintentionally constrain all chains.
• Performance or timeout concerns: Reduce diffusion_samples, sampling_steps, or max_parallel_samples; consider lowering save_trajectory or enabling multiprocessing via num_workers.
