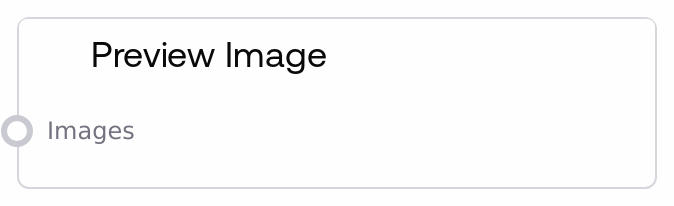

Preview Image¶
Writes incoming images to a temporary location and exposes them as previews in the Salt UI. It behaves like a lightweight image sink optimized for speed (low compression) and does not persist files long-term.
Usage¶
Use this node at the end of a branch when you want to visually inspect outputs during development or iterative workflows without saving permanent files. It accepts batched images and will produce a preview entry per image in the batch.
Inputs¶
| Field | Required | Type | Description | Example |
|---|---|---|---|---|
| images | True | IMAGE | One or more images to preview. Supports batched tensors; each batch item will generate a separate preview. | A tensor of shape [1, 512, 512, 3] from a VAE decode step |
Outputs¶
No outputs
Important Notes¶
- Output node: This node terminates a branch and does not produce downstream connectors.
- Temporary storage: Previews are saved to a temporary directory and may be cleaned up automatically; use Save Image if you need persistence.
- Batch handling: For batched inputs, a separate preview is generated for each image in the batch.
- Performance optimized: Uses low PNG compression for faster write speed, which can increase file size.
- Metadata embedding: When enabled and supplied, prompt and extra metadata are embedded into the preview files.
- Randomized prefix: Filenames include a short randomized prefix to avoid collisions across runs.
Troubleshooting¶
- No preview appears: Ensure the images input is a valid IMAGE tensor (e.g., [B, H, W, 3]) and that the node is executed. Check that the temporary directory is writable.
- Unexpected number of previews: Confirm the batch size in the incoming IMAGE tensor; the node writes one preview per batch item.
- Previews not persistent: This node is for temporary previews. Use Save Image if you need files to remain available long-term.
- Missing metadata: Metadata appears only if provided by the system and metadata saving is enabled in your environment settings.
- Large images slow to preview: Very large resolutions can slow down preview generation; consider scaling images before previewing.
