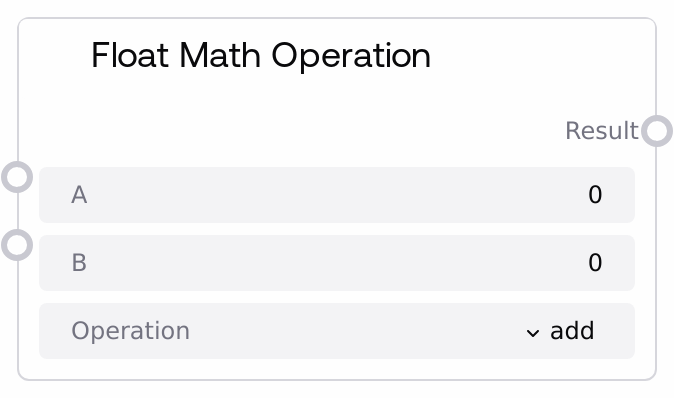

Float Math Operation¶
Performs basic mathematical operations on floating-point values. Supports addition, subtraction, multiplication, division, modulo, power, square root, and absolute value. Includes safety checks for division/modulo by zero and square root of negative numbers, returning 0.0 in those cases.
Usage¶
Use this node when you need to compute a single float result from two float inputs in a workflow (e.g., scaling, normalizing, combining values). Connect float outputs from prior nodes to inputs a and b, then choose the desired operation. For sqrt and abs, only input a is used.
Inputs¶
| Field | Required | Type | Description | Example |
|---|---|---|---|---|
| a | True | FLOAT | First float operand. Used as the primary input for all operations and the sole input for sqrt and abs. | 3.5 |
| b | True | FLOAT | Second float operand. Used for binary operations (add, subtract, multiply, divide, modulo, power). Ignored for sqrt and abs. | 2.0 |
| operation | True | SELECT | Mathematical operation to apply. Options: add (a + b), subtract (a - b), multiply (a * b), divide (a / b), modulo (a % b), power (a ** b), sqrt (sqrt(a)), abs (abs(a)). | divide |
Outputs¶
| Field | Type | Description | Example |
|---|---|---|---|
| result | FLOAT | The computed float result for the selected operation. Returns 0.0 if an invalid operation occurs (e.g., division by zero, modulo by zero, sqrt of a negative). | 1.75 |
Important Notes¶
- Operation scope: sqrt and abs only use input a; input b is ignored for these.
- Division/modulo by zero: If b is 0 for divide or modulo, the node returns 0.0 and logs a warning.
- Square root domain: If a is negative for sqrt, the node returns 0.0 and logs a warning.
- Input ranges: a and b accept values in [-1e10, 1e10] with a step of 0.001.
- Precision/tolerance: Results are standard Python float computations; consider floating-point precision implications for equality or modulo.
- Power operation: Large exponents or certain combinations may overflow or produce infinities/NaN depending on inputs.
Troubleshooting¶
- Result is 0.0 unexpectedly: Check if you performed divide/modulo by zero or sqrt on a negative number; the node returns 0.0 in these cases.
- Unexpected result for sqrt/abs: Ensure you supplied the intended value to a; b is ignored for these operations.
- Inaccurate decimal results: Floating-point arithmetic can introduce rounding errors. If exactness is required, consider scaling or alternative numeric handling before/after this node.
- Overflow or inf results with power: Reduce magnitude of a or b to avoid overflow, or clamp values upstream.
- Modulo behavior with floats: Floating-point modulo follows Python semantics and may be sensitive to precision; consider rounding inputs if needed.
