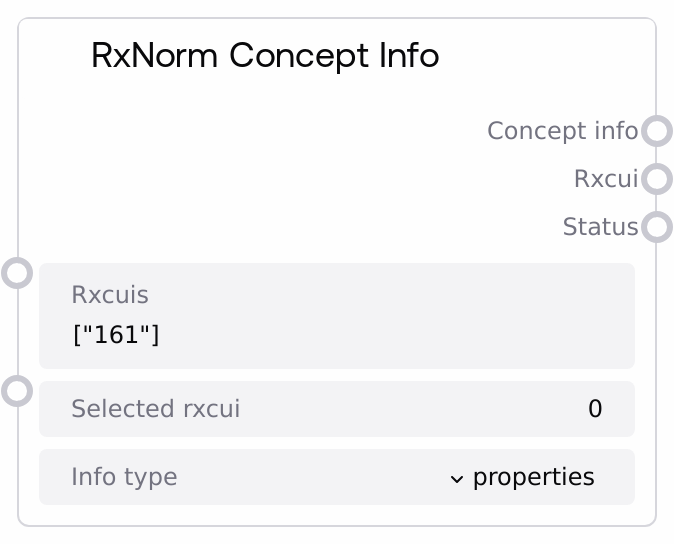

RxNorm Concept Info¶
Retrieves detailed information for a specific RxNorm concept (RxCUI). You provide a JSON array of RxCUIs and select which one to inspect by index. Depending on the chosen info_type, it returns the concept's name, NDCs, core properties, or all related information as formatted JSON.
Usage¶
Use this node after obtaining one or more RxCUIs (for example, from a drug search or mapping by NDC). Pass the RxCUIs as a JSON array string, choose which RxCUI to inspect with selected_rxcui (0-based index), and select the type of information to retrieve. The node outputs the requested concept data in JSON, the selected RxCUI, and a status message for flow control and logging.
Inputs¶
| Field | Required | Type | Description | Example |
|---|---|---|---|---|
| rxcuis | True | STRING | A JSON array string of RxCUIs to choose from. The node will parse this and select one by index. | ["161", "16120", "198440"] |
| selected_rxcui | True | INT | 0-based index into the rxcuis array indicating which RxCUI to inspect. | 0 |
| info_type | True | ["name", "ndcs", "properties", "all_related"] | Specifies which information to fetch for the selected RxCUI: name (RxNorm name), ndcs (linked National Drug Codes), properties (core concept properties), or all_related (comprehensive related info). | properties |
Outputs¶
| Field | Type | Description | Example |
|---|---|---|---|
| concept_info | STRING | Formatted JSON string containing the requested information for the selected RxCUI. Structure includes rxcui, info_type, and data. | { "rxcui": "161", "info_type": "properties", "data": { ... } } |
| rxcui | STRING | The RxCUI that was selected and queried. | 161 |
| status | STRING | Human-readable status message indicating success or error details. | Successfully retrieved properties for RXCUI 161 |
Important Notes¶
- Input format: rxcuis must be a valid JSON array string (e.g., "[\"161\"]"). Invalid JSON will cause an error.
- Indexing: selected_rxcui is 0-based. If the index is out of range, the node returns an error.
- Empty values: If the chosen RxCUI is an empty string, the node returns an error.
- Info type options: Only the listed values are accepted: name, ndcs, properties, all_related.
- Error propagation: If the upstream service returns an error, the node returns a JSON error payload in concept_info and an error message in status.
- Output structure: On success, concept_info wraps the raw data with rxcui and info_type for consistent downstream parsing.
Troubleshooting¶
- Selected RXCUI index out of range: Ensure selected_rxcui is less than the length of the rxcuis array.
- Invalid rxcuis JSON: Provide a properly formatted JSON array string. Example: "[\"161\", \"198440\"]".
- Empty RXCUI string: Verify that the selected element in the rxcuis array is a non-empty string.
- Unknown info_type: Use only one of the supported values: name, ndcs, properties, all_related.
- API Error in status: Inspect concept_info for the error payload and retry later or adjust the input. Network or service issues may cause transient failures.
