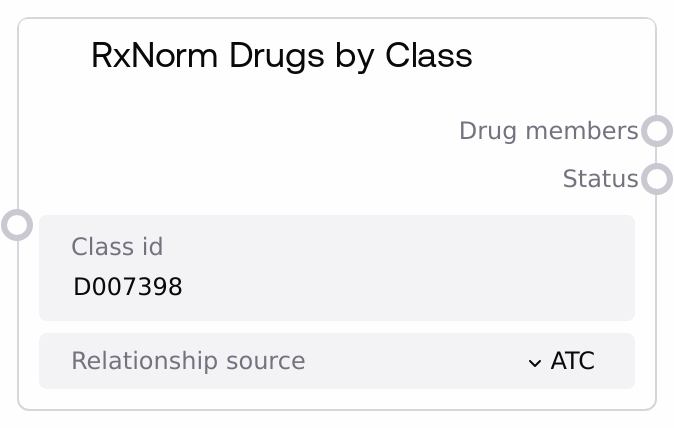

RxNorm Drugs by Class¶
Retrieves the set of RxNorm drug members associated with a given drug class identifier, filtered by a specified relationship source. Returns a JSON string containing the class ID, relationship source, and the raw drug members payload from the RxNorm service, along with a status message.
Usage¶
Use this node when you have a drug class identifier and need to enumerate its RxNorm drug members for downstream analysis or filtering. Typical workflows include: searching or selecting a drug class, then using this node to gather member drugs, followed by parsing or joining with other drug metadata.
Inputs¶
| Field | Required | Type | Description | Example |
|---|---|---|---|---|
| class_id | True | STRING | The identifier of the drug class to query. Must be a valid RxClass/controlled vocabulary class ID recognized by the selected relationship source. | D007398 |
| relationship_source | True | CHOICE | The classification or relationship source to use when retrieving class membership. Determines which system's class-to-drug relationships are returned. | ATC |
Outputs¶
| Field | Type | Description | Example |
|---|---|---|---|
| drug_members | STRING | A JSON string containing the query context and the raw drug members payload. Structure: { "class_id": ..., "relationship_source": ..., "drug_members": | { "class_id": "D007398", "relationship_source": "ATC", "drug_members": { /* RxNorm response object */ } } |
| status | STRING | A human-readable message indicating success or the nature of any error encountered. | Successfully retrieved drug members for class ID D007398 with relationship source ATC |
Important Notes¶
- Input validation: class_id must be non-empty; otherwise the node returns an empty JSON object and an error status.
- Source selection: relationship_source must be one of: ATC, ATCPROD, CDC, DAILYMED, FDASPL, FMTSME, MEDRT, RXNORM, SNOMEDCT, VA. Results vary by source coverage.
- Output format: drug_members is a stringified JSON object. Consumers should parse it before accessing fields.
- API behavior: If the underlying service returns an error, the node passes it through within the JSON and sets status to an API error message.
- Empty results: For some class/source combinations, the service may return no members; the payload may omit expected arrays. Handle missing fields defensively.
- Networking and rate limits: Errors due to connectivity or service limits will result in an error status and an empty JSON string for the primary output.
Troubleshooting¶
- Received '{}' and an error status: Ensure class_id is provided and not just whitespace.
- API Error in status: The relationship_source may be incompatible with the class_id, or the service encountered an issue. Try a different source or verify the class ID.
- Parsed JSON lacks expected arrays: Different sources return different structures; inspect the raw drug_members payload and add null checks before iterating.
- Unexpectedly few or no results: Switch relationship_source (e.g., from ATC to MEDRT or RXNORM) to compare coverage, or validate the class belongs to the chosen source.
- Downstream parser fails: Confirm you are JSON-parsing the drug_members string before accessing nested fields.
