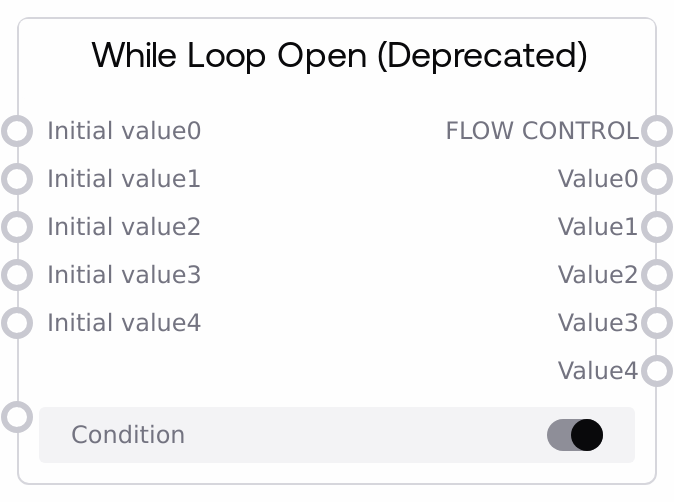

While Loop Open (Deprecated)¶
Opens a legacy while-style loop region. It emits a flow-control token and up to five pass-through values that act as the initial state for the loop. Actual looping is controlled by the corresponding While Loop Close node.
Usage¶
Use this node at the start of a while-loop section. Provide a boolean condition and any initial values you want to carry through each loop iteration. Connect its outputs to the nodes inside the loop and then to a While Loop Close node that evaluates the condition and triggers the next iteration. Prefer the newer Loop Open/Close nodes for most workflows.
Inputs¶
| Field | Required | Type | Description | Example |
|---|---|---|---|---|
| condition | True | BOOLEAN | Initial condition flag for the loop. The loop proceeds while the paired close node evaluates true. | True |
| initial_value0 | False | WILDCARD | First value carried into the loop (often used as a counter or primary state). | 5 |
| initial_value1 | False | WILDCARD | Second value carried into the loop. | state-a |
| initial_value2 | False | WILDCARD | Third value carried into the loop. | {'items': [1, 2, 3]} |
| initial_value3 | False | WILDCARD | Fourth value carried into the loop. | 0.25 |
| initial_value4 | False | WILDCARD | Fifth value carried into the loop. | False |
Outputs¶
| Field | Type | Description | Example |
|---|---|---|---|
| FLOW_CONTROL | FLOW_CONTROL | Flow-control token that must be connected to the matching While Loop Close node to form the loop. | Flow control handle |
| value0 | * | Pass-through of initial_value0 for use inside the loop. | 5 |
| value1 | * | Pass-through of initial_value1 for use inside the loop. | state-a |
| value2 | * | Pass-through of initial_value2 for use inside the loop. | {'items': [1, 2, 3]} |
| value3 | * | Pass-through of initial_value3 for use inside the loop. | 0.25 |
| value4 | * | Pass-through of initial_value4 for use inside the loop. | False |
Important Notes¶
- Deprecated: This node is marked as deprecated. Prefer using Loop Open and Loop Close for new designs.
- Pairing required: Must be paired with While Loop Close to function. The close node controls iteration and condition evaluation.
- State slots: Provides exactly 5 state/value slots (value0–value4). Unused inputs will pass through as null.
- Condition handling: The condition is provided here but is evaluated by the close node each iteration.
- Common pattern: When used via For Loop wrappers, initial_value0 often holds the iteration counter.
- Type agnostic: All value slots are wildcard-typed and can carry any supported data type.
Troubleshooting¶
- Loop never iterates: Ensure the FLOW_CONTROL output is connected to a While Loop Close node and that the close node's condition input is correctly wired.
- Values reset or None inside loop: Provide the corresponding initial_value inputs on the open node and ensure those outputs are connected through the loop into the close node.
- Infinite loop or unexpected repeats: Inspect the condition fed into the close node; it must eventually evaluate to false or update state each iteration.
- Wrong data carried between iterations: Verify that the loop close node routes updated values back into the open node's inputs for the next iteration.
- Socket limit reached: Only five value slots are available (0–4). Consolidate data into a structure if more are needed, or switch to the newer Loop nodes.
