ProteinMPNN

Predicts possible amino acid sequences for a given protein backbone, returning generated and top-scoring sequences.

ProteinMPNN

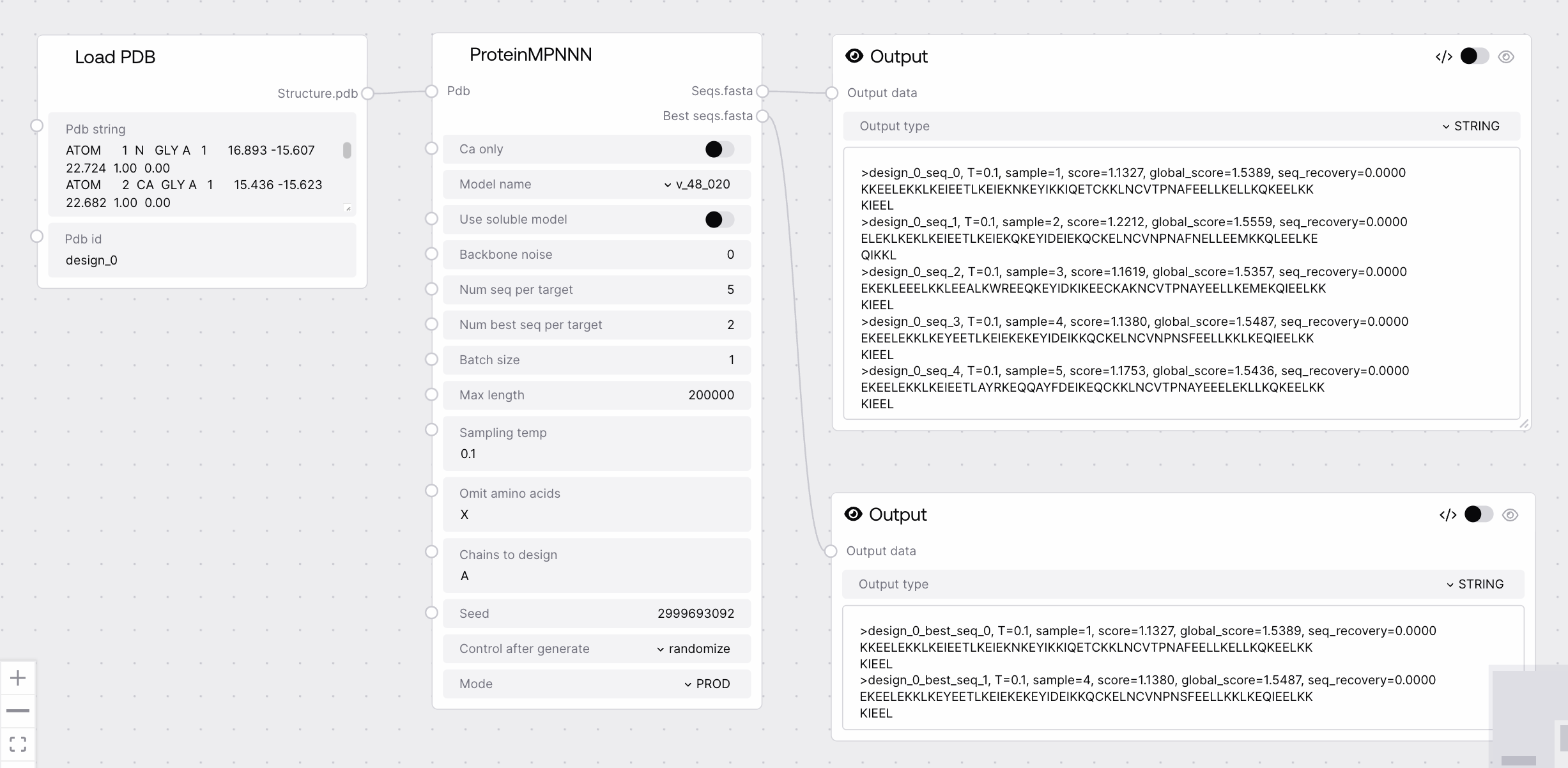

Quick Start

  1. Prepare your input PDB structure(s).
  2. Set the desired model parameters (e.g., model version, number of sequences).
  3. Connect the node and run to generate protein sequences.

Setup Guide

1. Prepare Input Data

  1. Ensure your PDB input is a dictionary {pdb_id: pdb_content}.
  2. Optionally, specify chains to design or amino acids to omit.

2. Configure Node Parameters

  1. Select model version and adjust generation settings (e.g., batch size, temperature).
  2. Set reproducibility seed if needed.

Basic Usage

Sequence Design for Protein Backbones

  • Generate diverse amino acid sequences for a given protein structure.
  • Restrict design to specific chains or omit certain amino acids.
  • Use batch mode for multiple structures.

Configuration

Required Inputs

Field Description Type Example
pdb Structures to run through the model. PDB {"A": "..."}
ca_only Whether to parse CA-only structures and use CA-only models. BOOLEAN False
model_name ProteinMPNN model name. COMBO v_48_020
use_soluble_model Whether to load weights trained on soluble proteins only. BOOLEAN False
backbone_noise Std. dev. of Gaussian noise to add to backbone atoms. FLOAT 0.0
num_seq_per_target Number of sequences to generate per protein. INT 10
num_best_seq_per_target Number of top-scoring sequences to return. INT 1
batch_size Batch size. Reduce if running out of GPU memory. INT 1
max_length Max sequence length. INT 200000
sampling_temp Temperatures for amino acids (comma separated). STRING 0.1,0.2,0.3
omit_amino_acids Amino acids to omit (comma separated). STRING X
chains_to_design Chains to design (comma separated, empty for all). STRING A,B
seed Base seed value for randomness. INT 42
mode Mode to run the node in (MOCK, PROD, TEST). COMBO PROD

Optional Inputs

None

Outputs

Field Description Example
seqs.fasta All generated sequences. >A_seq_0\n...
best_seqs.fasta Top best generated sequences. >A_best_seq_0\n...

Best Practices

Sequence Generation

  • Use higher sampling temperatures for more diverse sequences.
  • Adjust batch size based on available GPU memory.

Model Selection

  • Choose the model version and soluble weights according to your protein type.
  • For CA-only structures, ensure the model supports CA-only mode.

Troubleshooting

Common Issues

  • Error: CA-SolubleMPNN model is not available yet.: Set either ca_only or use_soluble_model to False.
  • Error: CA-v_48_030 model is not available yet.: Use a different model or set ca_only to False.
  • num_best_seq_per_target > num_seq_per_target: Ensure the number of best sequences does not exceed total generated.
